Aluminum Knuckles

Wilhelm Raceworks billet aluminum rear suspension knuckle

Billet aluminum suspension knuckles for the SW20 MR2!

Rear Knuckles

Benefits and Features:

-Saves 5.5lb per corner, a 28% weight reduction on the knuckle / hub assembly.
-Improved suspension geometry.  Strut angle is increased for a slightly better camber curve, and bump steer can be fine tuned much easier than with stock knuckles.
-Easier wheel bearing changes due to the bolt on bearing and hub assembly.
-Improved suspension travel compared to stock knuckles or stock knuckles plus my geometry kit.
-Alignment aid.  Threaded hole in the top of the knuckle tab allows an M8 screw to be installed to reference a camber setting before taking the suspension apart, enabling it to be re-assembled to the same camber setting easily.

Billet Aluminum rear knuckle kit Billet Aluminum rear knuckle

Requires:
-Front hubs from a 2006-2012 Toyota Rav4.  Not included.  Rav4 V6 hubs match the E153 axle spline, Rav4 4-cylinder hubs match the S54 axle spline.
-Roll center adjuster and tie rod from Wilhelm Raceworks suspension geometry kit OR control arms with an inverted ball joint (plus WRW rear tie rod).  Matching front geometry correction highly recommended.

If you already have my geometry kit you will need:
-A new pair of rod ends for the outer ends of the tie rods (5/8" bore instead of 1/2" bore).  $40
-If you have the short tie rod version of the geometry kit you will need a 1" longer tie rod tube (11" instead of 10"). $30
-If you have the long tie rod version of the geometry kit purchased after April 2021 you will need a 1" longer tie rod tube (15" instead of 14").  $30

-The options below represent the most common combinations of required parts.  Please contact me if you have any questions about what pieces may be needed to complete the installation.

Installation Instructions

Made in the USA!

SKU Aluminum Rear Knuckles
$980
Currently out of stock, can be backordered.
* Add Geometry Kit?:



Billet Aluminum rear knuckle Billet Aluminum rear knuckle Billet Aluminum rear knuckle

Front Knuckles

Billet Aluminum front knuckle kit Billet Aluminum front knuckle kit

Billet aluminum front suspension knuckles for the SW20 MR2, coming soon.

Benefits and Features:

-STRONGER HUBS!  The MR2 front hubs are a serious weak point when subjected to the abuses of track or racing use.  The Camry hubs used with these knuckles are approximately 2.3x stronger than the stock MR2 hubs.
-Easy wheel bearing changes due to the bolt on bearing and hub assembly.  You also get a new hub with every wheel bearing change, reducing the concern of fatigue failure on the hub.
-Saves ~2lb per corner, a 15% weight reduction on the knuckle / hub assembly.
-Adjustable ackerman.  Four positions, ranging from 7% ackerman up to 34% to allow steering geometry to be fine tuned to your application and tires.
-Alignment aid.  Threaded hole in the top of the knuckle tab allows an M8 screw to be installed to reference a camber setting before taking the suspension apart, enabling it to be re-assembled to the same camber setting easily.

Requires:
-Rear hubs from 2002-2011 Camry. Not included.  2002-2004 has a non-ABS option that is slightly cheaper.
-If you have ABS:  Rear ABS sensor wires from 2002-2011 Camry, plus two new connectors.  You will crimp these onto the chassis end of the Camry wire.  Note that if used with my "extreme" top mounts you will need to remove the extra back shell from the sensor connector to for it to fit.
-Roll center adjuster and front tie rod from Wilhelm Raceworks geometry correction kit, OR control arms with an inverted ball joint (plus WRW front tie rod).  Matching rear geometry correction highly recommended.

Note: The hub flange is slightly larger diameter than the stock MR2 hubs, and are not compatible with stock MR2 rotors or with Supra rotors without modification to reduce the diameter of the hub flange.  I can perform this modification for you, please contact me for details.

SKU Aluminum Front Knuckles
$960
In Stock
* Add Geometry Kit?:



Installation instructions

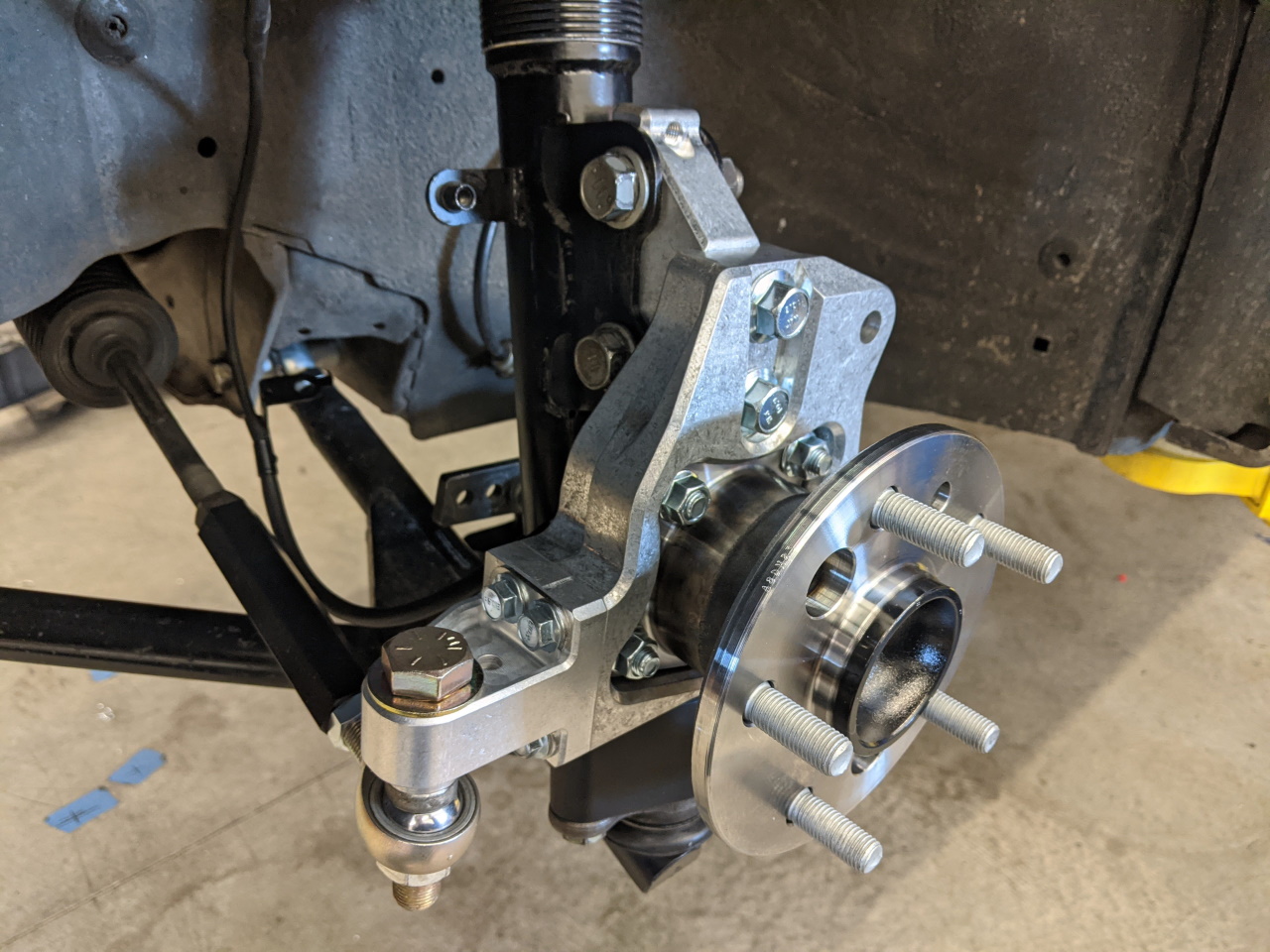

Billet Aluminum front knuckle installed Billet Aluminum front knuckle installed

Adjustable ackerman locating marks




The included bump steer spacers should be close enough for most users, but if you wish to fine tune a little you will need some additional spacers.  This kit includes 2 each of .030", .060", .100", and .200" aluminum bump steer spacers.  You will need to remove the spring, and jack the suspension through it's range of motion using a bump steer gauge to properly adjust bump steer.

Bump steer spacer kit

SKU Bump Steer Spacer Kit
$12
In Stock


23 comments

  1. Sunday, 24 October 2021 13:08
    Anyway to get a set for the aw11 made? I need to switch to sw20 turbo splines since i keep breaking axles.
    1. Monday, 25 October 2021 22:27

      The main body and the strut tab would probably work as is on the MKI (since the strut is the same, and the ball joint is the same). The only issue might be the toe arm, and while I think it's a bit longer than the one on the MKI, it may work (I would have to get under my MKI to take a look). Maybe a custom shorter toe arm would be required. Worst case would be if the tie rod needed to be inside the end of the toe arm to make the bump steer curve work right. Send me an email if you want to discuss further.

  2. Monday, 01 November 2021 11:45
    Will these front and rear knuckles work with the OEM Turbo brakes and rotors?  Reason I'm asking is the current Wilwood brake kit I'm running uses the stock brake location with the Hux Racing adapters using the Supra Rotors in the front and the RX8 Sport (front) rotors for the rear.
    1. Tuesday, 02 November 2021 10:06
      Yes, I designed both to have stock caliper mounting tabs so they should work with stock brakes or any existing big brake kit.  The hubs also have the same brake rotor pilot diameter so the rotor (or adapter rings in the case of your RX8 rotors) will fit just like stock hubs.
    2. Wednesday, 03 November 2021 19:46
      Great thanks
  3. Wednesday, 08 December 2021 18:18
    Do you see any issues running these rear knuckles with Hux's control arms?
    Thanks!
    1. Wednesday, 08 December 2021 18:26
      Not at all.  I tried to design these to be compatible with as many existing pieces as I could, including the Hux control arms.
  4. Friday, 07 January 2022 08:34
    Do these take standard abs sensors?
    1. Friday, 07 January 2022 09:18
      The rear takes the standard MR2 ABS sensor (although there is a Camry sensor that can be substituted with a little work if you need a cheap replacement).  The front uses the sensor that is built into the wheel bearing assembly, which can easily be adapted to the MR2 wiring using a Camry ABS sensor wire with a new connector crimped on the end.
  5. Sunday, 06 February 2022 15:12
     Hi Alex,
    I see that you list Rav4 hubs as necessary. Is this a cheap source or are they dimensionally different? I would like to use these with driveshaftshop com level 5 hubs.
    1. Monday, 07 February 2022 10:36
      Hi Charles,  The Rav4 hubs are necessary since the knuckles convert to a modern bolt on style wheel bearing / hub assembly.  So it's more than just the hub, it's the bearing and flange that bolts it to the knuckle.  So, I don't know of any way to use the larger DSS axles.
  6. Tuesday, 15 February 2022 23:14
    I'm researching Kswapping my 91 NA MR2 and bolt-on hubs could solve my 28-to-26 spline issue. Is the bolt pattern common enough to take other bolt on hub assemblies?
    1. Wednesday, 16 February 2022 07:53
      There may be other hubs out there with the same dimensions and a different spline count, but I am not aware of them.  You may be able to compare specs on Rock Auto to find something.
  7. Monday, 14 March 2022 14:56
    Hi Alex, im over in the UK - am very interested in these. Do you have a part number for the hubs so i can see if i can source them over here from lexus like i will be for my 2GR?
    1. Monday, 14 March 2022 17:38
      Hi Scott, for the rear knuckles the OEM part number is 43550-42020 for the E153 axles and 43550-42010 for the S54 axles.  However given the cost of OEM hubs, you may be better off buying a good brand aftermarket (NSK, Koyo, etc), even if it means international shipping.
  8. Sunday, 01 May 2022 11:13
    Hi Alex,
    Would it be ok to use aftermarket RAV 4 hubs, such as from TRQ or True Drive, or would you recommend OEM?
    1. Sunday, 01 May 2022 13:29
      I don't see any problem with aftermarket hubs in general, but there is a range of both quality and price out there.  I have used both Centric Premium and NSK on my car.  The Centric Premiums have Koyo bearings in them (an OEM supplier for Toyota), and NSK is also an OEM supplier.  On my front NSK hubs, the ABS sensor is even stamped with a Toyota part number.  On the other hand there are some aftermarket brands out there that are like 30 bucks for a hub... maybe they are OK, maybe they aren't.
  9. Thursday, 09 June 2022 12:25
    Hey Alex,
    Quick note, the parts number for the 3.5L Rav4 has changed to 43550-0R020. Also, Amazon has them for around $264 with free shipping. I just ordered 2. Thought I share the info for your customers looking for OEM rather than aftermarket.
    Best regards,
    Abimael Mercado
    1. Sunday, 12 June 2022 10:26
      Thanks for the info Abimael!
  10. Friday, 01 July 2022 11:52
    Hi,
    Can this aluminium front knuckles kit be mounted on a street MR2 without your alignement kit ?
    1. Friday, 01 July 2022 13:02
      No. The position of the steering arm is such that if used without the roll center adjuster, the optimal tie rod position would be inside the steering arm.
  11. Friday, 26 August 2022 12:26
    Hi Alex, does backordering the knuckles reduce wait time? is there a estimate when they will be in stock?
    1. Friday, 26 August 2022 21:49
      I will be producing another batch of rear knuckles a bit later this fall.  You can put in a back order if you want to be the first in line to get one of the new batch, or just sign up for a stock notification email.  Unless I get several back orders, it probably won't change the timing much.
